No. 8, grade 60, rebar bending capacity.

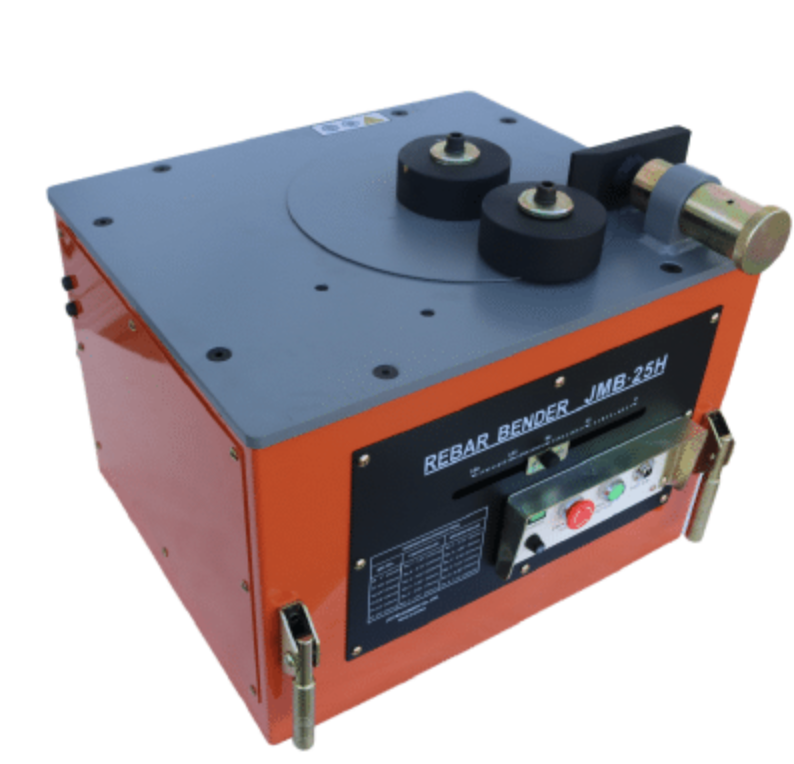

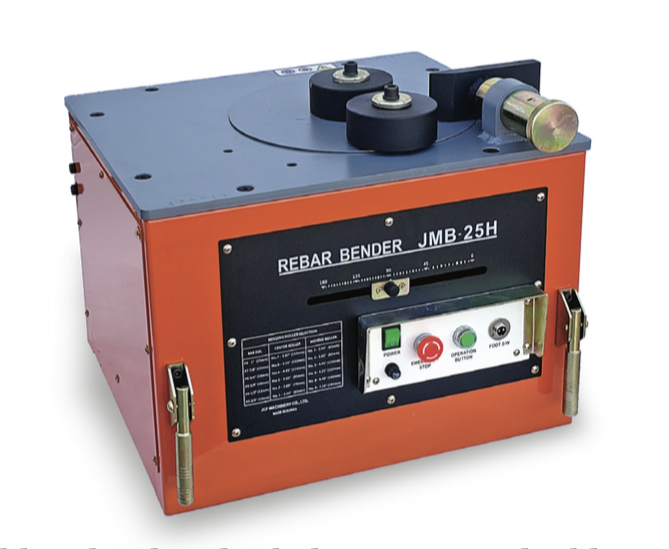

This new heavy-duty portable rebar bender helps to save valuable man-hours by effortlessly bending rebar up to #8 (1?) Grade 60 at job sites or in your shop. This strong elecrical-mechanical bender has a preset angle lock for repeating the same angle bends. The
lockable-type angle selector can be set to accurately bend any angle from 0-180 degrees.
Bends (4) each #3 rebar, (3) each #4, (2) each #5 or #6 rebar and (1) #7 or #8 rebar at one
time. The roller chart makes it easy to select the correct combination of rollers to achieve
an inside bending diameter of six times the rebar diameter. An emergency stop switch
and four lifting handles are standard features. The JMB-25H portable rebar bender comes
complete with (9) bending rollers in a steel carrying case, a tool kit, and a standard foot
pedal control switch for hands-free bending.
Simultaneous Bending Capacity and Number of Bars

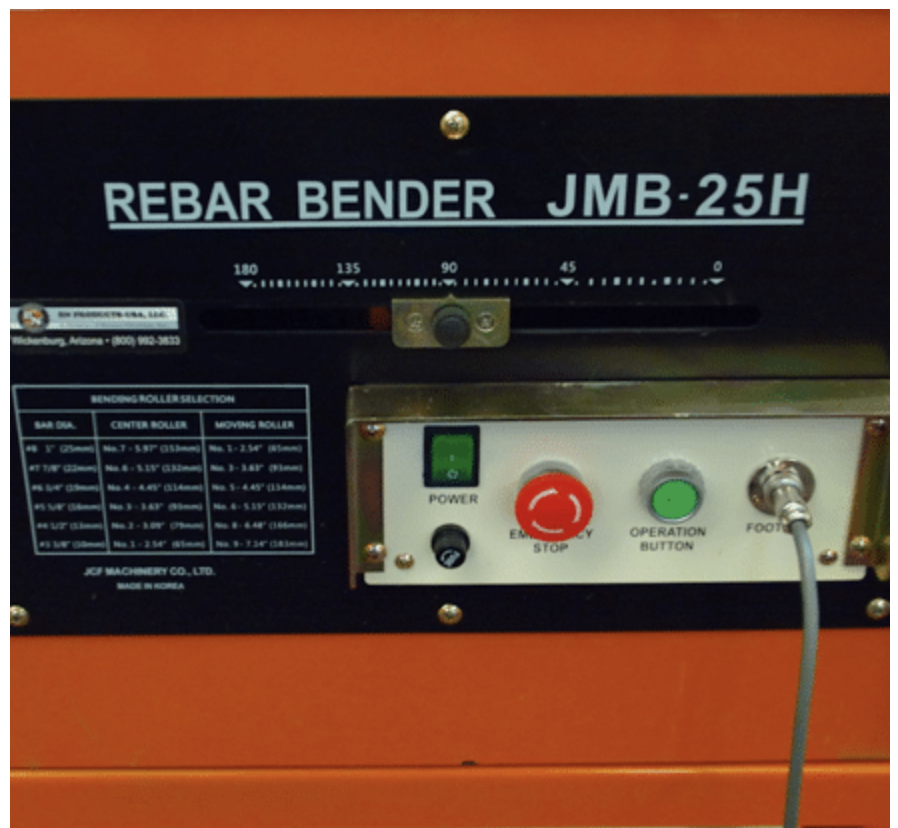

(refer to the front panel of the machine)
Rebar No. # 3 # 4. # 5 # 6. # 7 # 8
# of bars 4 3 2 2 1 1
