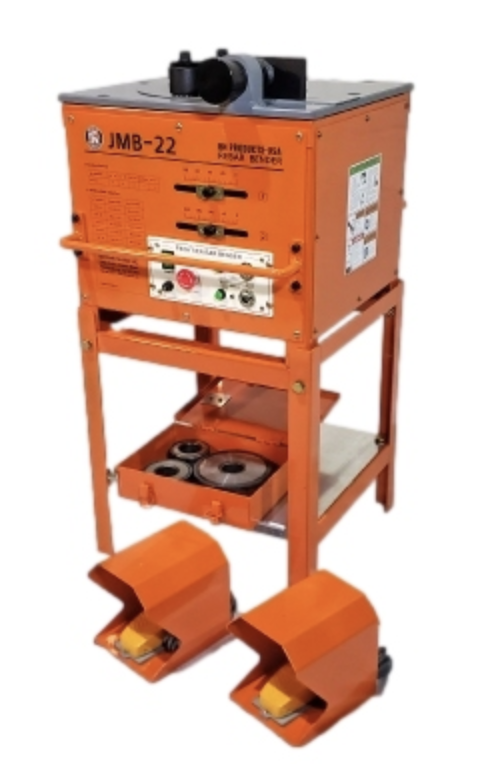

Products that make money, save money and add value to your bottom lineJMB-22 Bender Literature.indd JMB-22 Table-Top #7 Rebar Bender
This heavy-duty portable rebar bender helps to save valuable man-hours by effortlessly bending rebar up to #7 (7/8”) Grade 60 at job sites or in your shop. This strong electrical-mechanical bender has two preset angle locks for repeating the same angle bends. The lockable-type angle selectors can be set to accurately bend any angle from 0-180 degrees. Bends (4) each #3 rebar, (3) each #4, (2) each #5 or #6 rebar and (1) #7 rebar at one time. The roller chart makes it easy to select the correct combination of rollers to achieve an in- side bending diameter of six times the rebar diameter. An emergency stop switch and front and back lifting handles are standard features. The JMB-22 portable rebar bender comes complete with bender stand, (5) bending rollers in a steel carrying case, a tool kit, and two (2) standard foot pedal control switches for hands-free bending of two independent bending angles
Maximum rebar diameter: #7 (7/8”) (22mm) Grade 60
Bending Angle: 0 – 180 degrees
Bending Speed: 9 Seconds for 180 degree bend
Power Supply: 115V 50/60Hz -15 amps
Weight (kg): 225 lbs. (102 kg)
Dimensions (mm): LxWxH 17.25” (440) x 18.5” (470) x 18.5” (470)
