Item #: D220XL
Availability: Custom Order
Usually ships In Will Advise
  • Mechanically couple any configuration of different sized rebar together
  • Available from #4 through #18 Rebar
  • Avail: Plain, Epoxy Coated or galvanized
  • Achieves type 2 mechanical connection with Grade 75 / 80 rebar
  • No bar end preparation
  • Installation at the job site
  • Used in tension, compression, and seismic applications
  • No fabrication required
  • APPROVALS / COMPLIANCE: ACI 318 (ASTM A615 and A706), Army Corps of Engineers CW 03210, Satisfies AC-133,
  • International Building Code (IBC), AASHTO
  • CALL FOR PRICING AND LEAD-TIME
  • Made to order allow for manufacturing lead-time
Price: CALL

    Quantity:

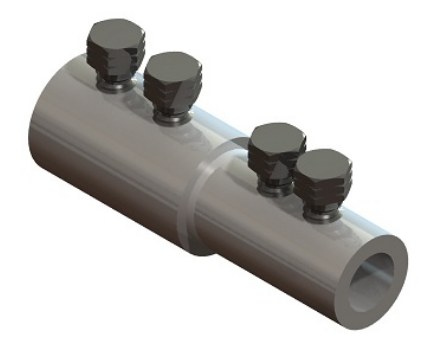

    The Dayton Superior D220XL transitional coupler is used to mechanically couple two different rebar sizes together. It consists of thick walled tubes, specially designed lock shear bolts, serrated grip rails and a weldment disc. The D220XL is made from USA melted and rolled steel.

    To order specify: Finish, Bar size "A", Bar size "B" and the # of pieces

    For example: "D220XL- Epoxy Coated Side A- #4 Rebar, Side B- #5 Rebar, ____ pcs

    Click link below for Product Data

    d220xl---bar-lock-xl-series-coupler-tech-data-sheet.pdf

    INSTALLATION

    1. Insert the end of the first rebar into the coupler (for

    that size rebar) until it contacts the weldment disc.

    2. Holding the first rebar in place, tighten all bolts on

    that half until they are hand tight against the rebar.

    3. Insert the end of the second rebar into the coupler

    (for that size rebar) until it contacts the weldment.

    disc.

    4. Holding the second rebar in place, tighten all bolts on

    that half until they are hand tight against the rebar.

    5. In a random, alternating pattern, tighten all bolts to

    approximately 50% of the specified bolt torque value.

    6. In a random, alternating pattern, tighten all bolts to

    approximately 75% of the specified bolt torque value.

    7. In a random, alternating pattern, tighten all bolts

    until all the heads of the bolts shear off.

    Note:

    A. Prior to tightening, the serrated rails MUST

    remain aligned in the same position as they were

    manufactured. If they are damaged or knocked out

    of alignment while positioning, installation MUST

    cease and a new coupler used.

    B. Bolt tightening MUST be done in a random

    alternating pattern similar to tightening the lug nuts

    on an automobile wheel.

    C. A high-quality, 1? -pneumatic drive, impact

    wrench with at least 100 psig air flow and 185

    CFM of delivered air through a no less than 0.75?

    hose MUST be used for installation.
