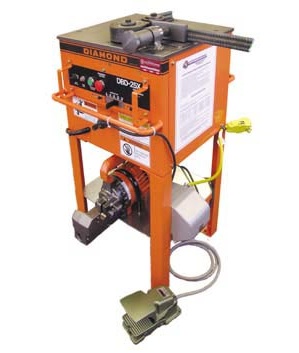

DBC2520 & DBC2525
These are essential combination rebar bender and cutter units. They simply combine the very popular DBD-25X bender with the DC-20WH or DC-25X rebar cutter both together on a stationary stand.
The main advantage to owning this versatile combination unit is that the rebar cutter can be simply removed and used in any portable application or locked into a stationary position and then operated by a standard foot pedal switch.
The other advantage is production; the bender table is at the ideal working height and the DBD-25X bends rebar from 0 -180 degrees. The BCSE-25X combination stand joins the bender & cutter both together.
DBC-2520 Rebar Cutter / DBD-25H Rebar Bender COMPLETE UNIT
| DBC-2520 | |
| Max. Cutting | #6 or 3/4in. Grade 60 |
| Max. Bending | #7 or 7/8in. Grade 60 |
| Cutter Power | 115 Volt 50/60 Hz -10 amps |
| Bender Power | 115 Volt 50/60 Hz -12 amps |
| Total Weight (kg) | 250 lbs. (113.5 kg) |
| Dimensions LxWxH | 19.25in.(490 mm) x 24.75in. (629 mm) x 37.25in.(946 mm) |
| |
| DBC-2525 | |
| Max. Cutting | #6 or 3/4in. Grade 60 |
| Max. Bending | #7 or 7/8in. Grade 60 |
| Cutter Power | 115 Volt 50/60 Hz -10 amps |
| Bender Power | 115 Volt 50/60 Hz -12 amps |
| Total Weight (kg) | 250 lbs. (113.5 kg) |
| Dimensions LxWxH | 19.25in.(490 mm) x 24.75in.(629 mm) x 37.25in.(946 mm) |
