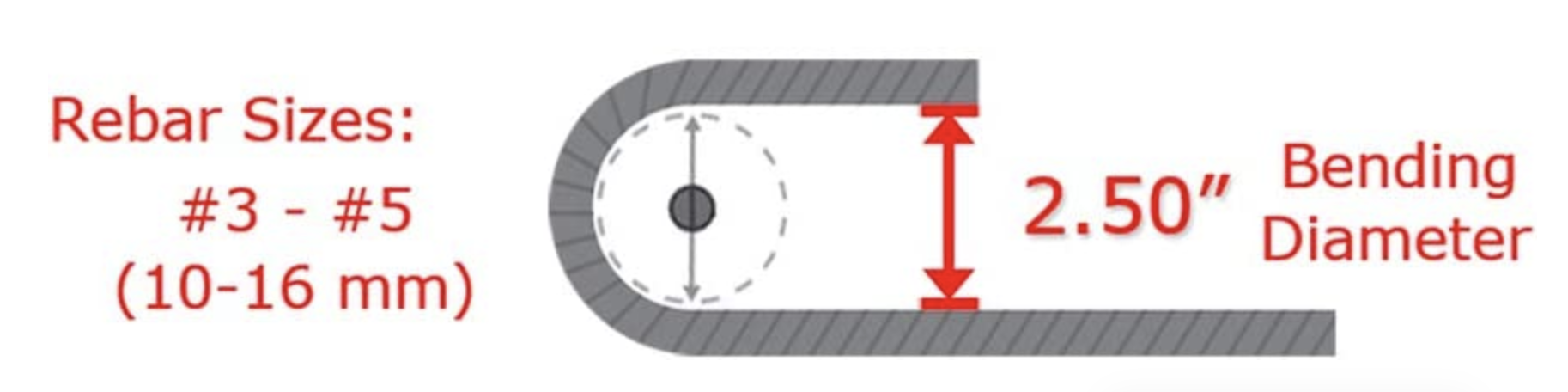

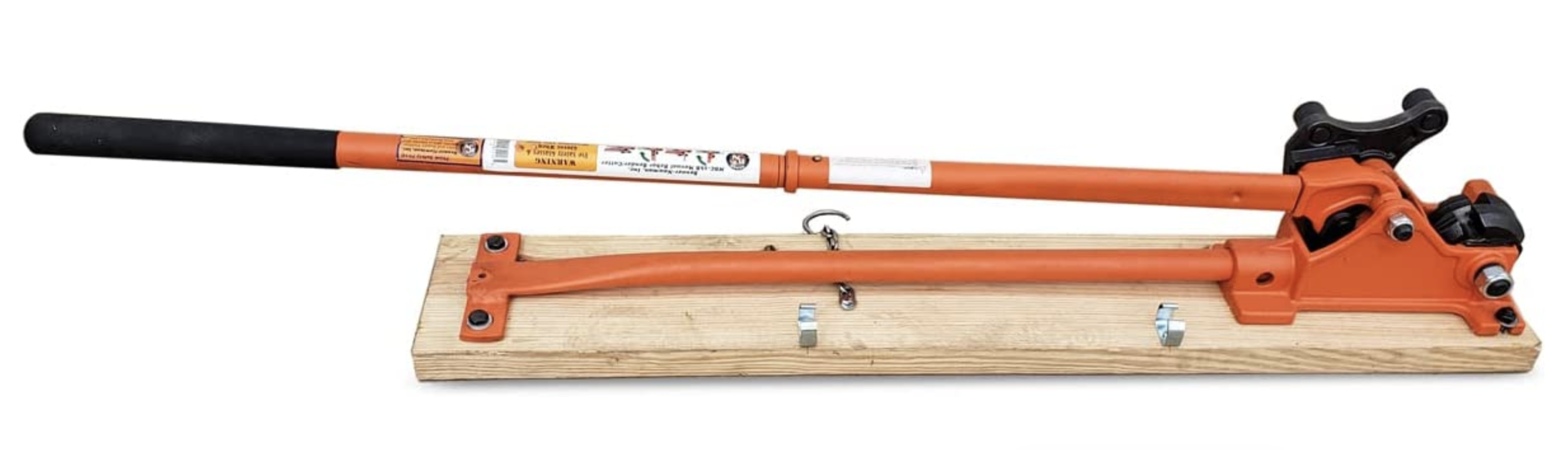

The BN Products Manual Rebar Bender/Cutter has a reinforced detachable long handle to provide greater leverage when cutting and bending up to 5/8in. #5 Grade 60 rebar. It features an adjustable 2 1/2in. (63.5mm) diameter bending roller and replaceable cutting jaws that incorporate two open slots with innovative shaped blades to prevent chipping. The sturdy frame design is firmly mounted on a 2in. x 8in. x 44in. wooden board and is ready to use out of the box. Other features include a comfortable long no-slip handle grip, and a lifting chain and ring to make it easier to carry to and from the jobsite.
Bending Rebar with MBC-16 Manual Rebar Bender/Cutter
Bending procedure for a perfect 90 degrees in one shot or 180 degrees in two.
| Cutting
Capacity | | #5 (5/8in.) (16 mm) rebar grade 60 (420 MPa)
|
| Bending Capacity | | #5 (5/8in.) (16 mm) rebar grade 60 (420 MPa) |
| Bending Capability | | 0 - 180 degrees
|
| Replacement Jaw Set | | #MBC-16RJS |
| Shipping Weight | | 57 lbs. (26 kg) with wood board |
Overall Dimensions
| | 60.5in. L x 7.5in. W x 10in. H |
| Warranty | | 6 months (includes parts and labor) |
